Common interface of car wiper

U-shaped car wiper interface

    The wiper arm of this interface is of traditional style and has strong uniformity. As long as the wiper you buy is U-shaped, you can install it, but this kind of wiper replacement method is relatively old nowadays, and the installation method is not so user-friendly . This type of wiper is commonly found on low-end and mid-range models, and is mainly matched with a bone wiper.

    When disassembling, you need to push the wiper to the root of the wiper arm. After it is completely separated from the interface of the wiper arm, pull it out in the opposite direction. This action requires a more delicate technique. The movable wiper should be pulled out before pulling it out. Rotate the scraper, otherwise it will be hindered when pulling out. It should be noted here that many wipers will be tight when they are disassembled. At this time, we should not use too much force, otherwise it is easy to injure the wiper interface and our hands.

What water to add to car wiper

    Pluggable car wiper interface

    Plug-in car wiper style ①

    This kind of wiper interface is to insert the wiper directly into the wiper arm and lock it by the locking block. The method of identifying this kind of interface is very simple, just observe whether there is a "small button" on the wiper arm. When replacing, we use one hand to press the small button on the wiper arm to the end, so that the wiper can be moved, and with the other hand, pull the wiper out to remove the wiper. It is easier to install, just insert the new wiper directly into the wiper arm.

    Plug-in car wiper style ②

    This type of wiper is fixed in the same way as the previous one, but the lock button is not above the wiper arm, but on both sides. When removing, you need to press the lock buttons on both sides of the wiper at the same time, and the other hand to hold the wiper. Just pull it out. However, this structure will be awkward when installing. Don't use too much force, otherwise the wiper interface will be injured.

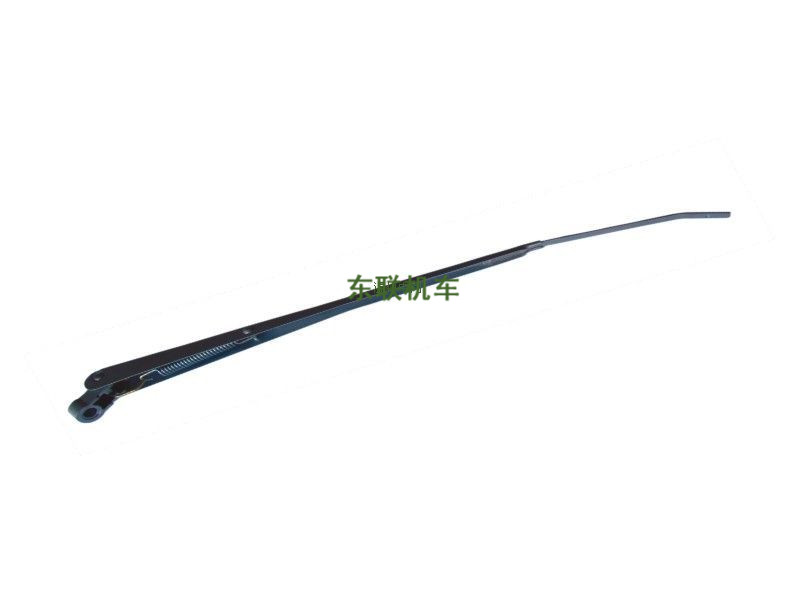

Toyota wiper arm

     The above two types of wiper arm interface forms mostly appear in Japanese, Korean and American cars.

     Plug-in car wiper style ③

     This kind of windshield wiper is easy to recognize from the appearance. The link between the wiper arm and the wiper seems to be two layers together. I personally think that this kind of wiper is easy to replace. After erecting the wiper arm, rotate the wiper to a vertical position with the wiper arm, then the wiper can be removed from the wiper arm without touching any locking device. This type of wiper arm often appears on European models, and Fox uses this type of wiper arm.

     The above are the common interfaces and disassembly and installation methods of car wipers. I hope this article can be helpful to the majority of users.
